LED Drivers

LED drivers are fundamental to low voltage lighting. Their purpose is to transform mains power into the low voltages used by LED systems.

There are many variables to consider such as the operating environment, LED design, efficiency and power factor, control interface and form factor. There are LED drivers optimised for specific industries, regulatory conditions and duty cycles.

Our expertise is to understand this and advise our customers on the correct choice.

To find out more, call us on 44 (0) 1932 355221 or complete our online enquiry form.

Product specification

Product	Supply Voltage	Wattage	Output Specification	Dimming Attributes	Accessories
Internal (IP20)	90-305 VAC	5W-400W	CV/CC	Non-dimmable, CCT, 0.1% dimming, Phase cut Triac / mains dimming, 0/1-10V, DMX, DALI, DALI-2, D4i, Switch / push dim, wireless (protocols) IOT interface	End Caps (built in), Dimming POTS, Switches, face plates, Connectors, Cable assemblies, interfaces
External (IP65)	90-305 VAC	5W-400W	CV/CC	Non-dimmable, CCT, Phase cut Triac / mains dimming, 0/1-10V, DMX, DALI & DALI-2, D4i, Switch / push dim, wireless (protocols) IOT interface	End Caps (built in), Dimming POTS, Switches, face plates, Connectors, Cable assemblies, interfaces, NFC programmer

Product specification

Product	Supply Voltage	Wattage	Output Specification	Dimming Attributes	Accessories
Internal (IP20)	90-305 VAC	5W-400W	CV/CC	Non-dimmable, CCT, 0.1% dimming, Phase cut Triac / mains dimming, 0/1-10V, DMX, DALI, DALI-2, D4i, Switch / push dim, wireless (protocols) IOT interface	End Caps (built in), Dimming POTS, Switches, face plates, Connectors, Cable assemblies, interfaces
External (IP65)	90-305 VAC	5W-400W	CV/CC	Non-dimmable, CCT, Phase cut Triac / mains dimming, 0/1-10V, DMX, DALI & DALI-2, D4i, Switch / push dim, wireless (protocols) IOT interface	End Caps (built in), Dimming POTS, Switches, face plates, Connectors, Cable assemblies, interfaces, NFC programmer

Custom requirements

We have only shown a selection of products above, if you haven’t found what you are looking for contact our technical team who will be happy to help. We offer a fully customisable service finding or developing the right product for your project.

PRO Range is our premium range designed to offer high CRI, minimum R9 value, extended warranty and advanced performance features. To learn more about the range visit our PRO Range page.

Product	Supply Voltage	Wattage	Output Specification	Dimming Attributes	Accessories

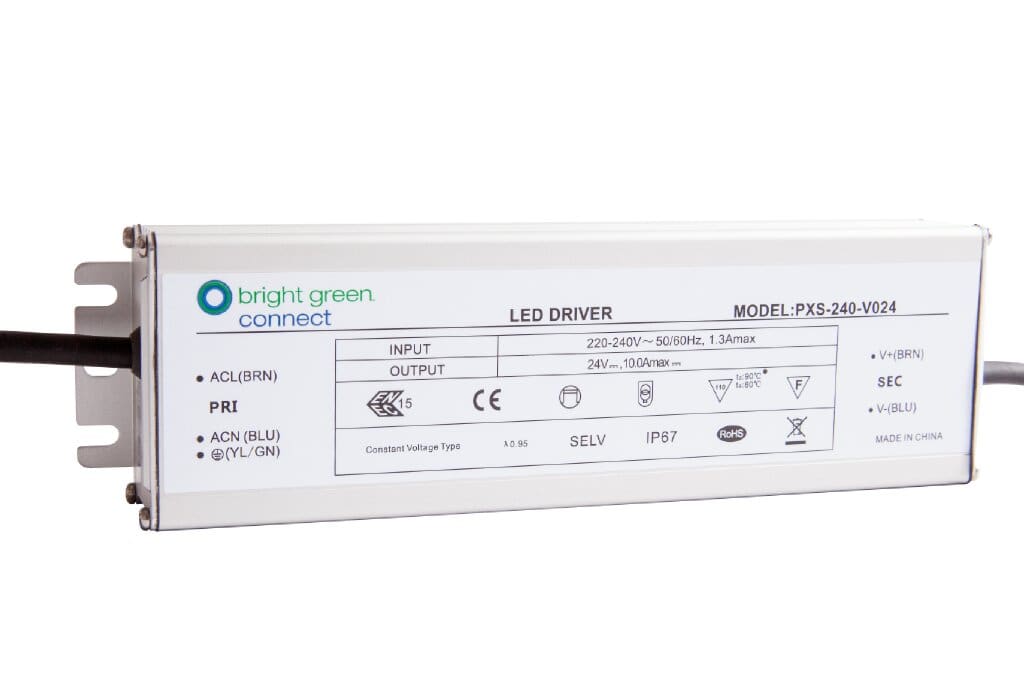

PXS	90-305 VAC	5W-400W	CV/CC	Non-dimmable, 0-10V, DMX, DALI & DALI-2, D4i, Switch / push dim, wireless (protocols) IOT interface	Dimming POTS, Switches, face plates, Connectors, Cable assemblies, interfaces, NFC programmer
PXH	180-528 VAC	160 – 400W	CV/CC	Non-dimmable, 0-10V, DMX, DALI & DALI-2, D4i, Switch / push dim, wireless (protocols) IOT interface	Dimming POTS, Switches, face plates, Connectors, Cable assemblies, interfaces, NFC programmer

PRO Range is our premium range designed to offer high CRI, minimum R9 value, extended warranty and advanced performance features. To learn more about the range visit our PRO Range page.

Product	Supply Voltage	Wattage	Output Specification	Dimming Attributes	Accessories
PXS	90-305 VAC	5W-400W	CV/CC	Non-dimmable, 0-10V, DMX, DALI & DALI-2, D4i, Switch / push dim, wireless (protocols) IOT interface	Dimming POTS, Switches, face plates, Connectors, Cable assemblies, interfaces, NFC programmer
PXH	180-528 VAC	160 – 400W	CV/CC	Non-dimmable, 0-10V, DMX, DALI & DALI-2, D4i, Switch / push dim, wireless (protocols) IOT interface	Dimming POTS, Switches, face plates, Connectors, Cable assemblies, interfaces, NFC programmer
